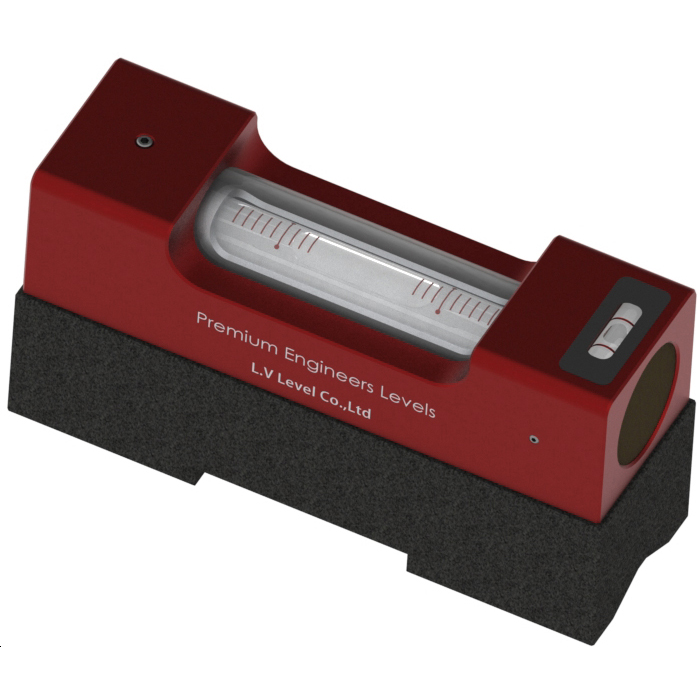

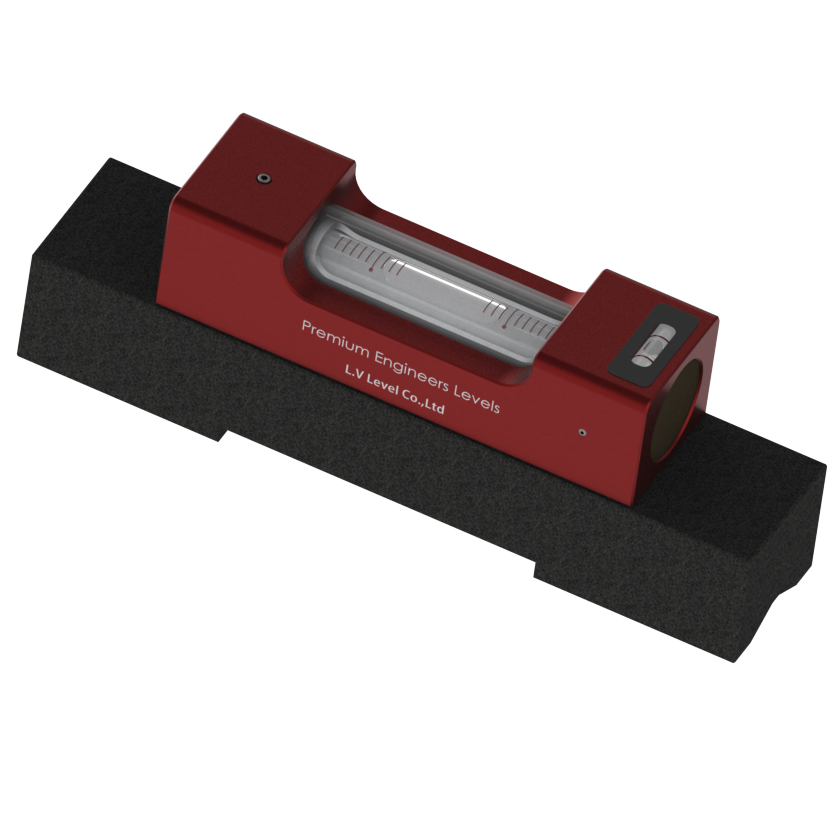

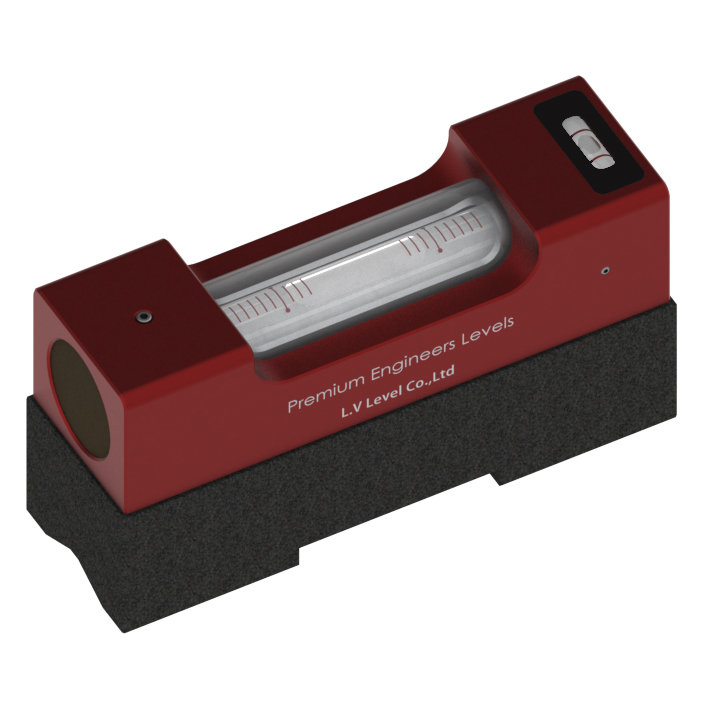

Premium Engineers Levels

Applications and Features

Optimised vial design ensures fast stabilisation and excellent bubble contrast
Precision ground Granite base has flat and ‘V’ surfaces, and will not corrode, distort or dent
Extremely fine and rigid adjustment mechanism provides simple calibration, high shock resistance and long term stability
Two base length options: 125mm and 200mm
Three sensitivity options: 0.02, 0.05 & 0.1mm/m
Supplied in a protective aluminium carry case
Wide operating temperature range -5 to +45°C

Part No.
ISOL4-2012	69.85(mm) Length	12.0(mm) Width	25.31(mm) Height	3'/2mm Sensitivity	Brass Housing Material	Black Anodised Finish
PELC-200/0.05	200.00(mm) Length	40.00(mm) Width	64.00(mm) Height	0.02 mm/m Sensitivity	Granite base / Aluminium Material	Adonised
PELC-200/0.05	200.00(mm) Length	40.00(mm) Width	64.00(mm) Height	0.05 mm/m Sensitivity	Granite base / Aluminium Material	Adonised
PELC-200/0.1	200.00(mm) Length	40.00(mm) Width	64.00(mm) Height	0.1 mm/m Sensitivity	Granite base / Aluminium Material	Adonised
PELC-125/0.1	125.00(mm) Length	40.00(mm) Width	64.00(mm) Height	0.1 mm/m Sensitivity	Granite base / Aluminium Material	Adonised
PELC-125/0.05	125.00(mm) Length	40.00(mm) Width	64.00(mm) Height	0.05 mm/m Sensitivity	Granite base / Aluminium Material	Adonised
PELC-125/0.02	125.00(mm) Length	40.00(mm) Width	64.00(mm) Height	0.02 mm/m Sensitivity	Granite base / Aluminium Material	Adonised
ISOL6-8000	160(mm) Length	40.00(mm) Width	41.36(mm) Height	0.10mm/m Sensitivity	Cast Iron Base Material	Spray Paint Finish
