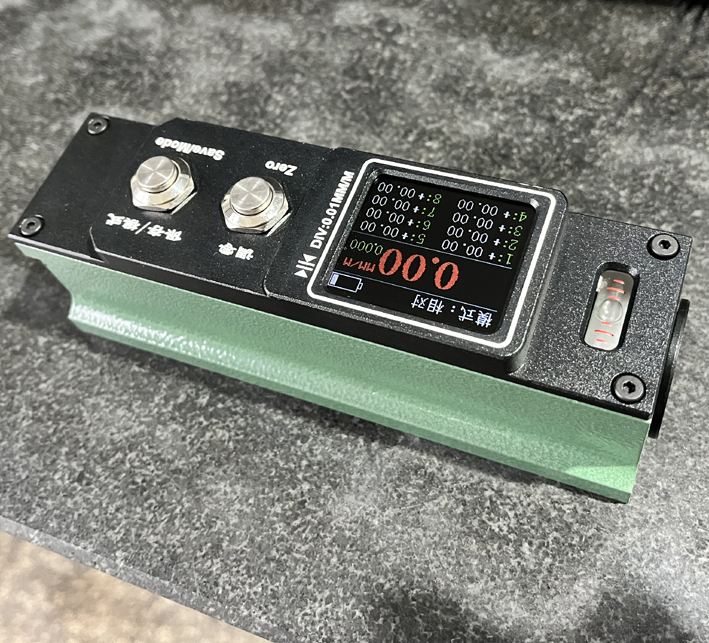

DATASHEET(pdf 3.69 MB) LVH-Digital Engineering Levels,0.01mm/m
Features
HIGH PRECISION ANGLE MEASUREMENT
High resolution of 0.01MM/M angular measurement.
ANGLEMETER
ALTERNATE ZERO SETTING
Enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature.
ABSOLUTE LEVEL SETTING
Enables user to perform absolute symmetry readings for both “front” & “reverse” (180 degrees) positions of any measurement angle.
WIRELESS CONNECTIVITY (OPTIONAL)
Wireless connection (Bluetooth class 1) to device for remote monitoring, data logging & analysis
Applications
| * MONITORING A GENERATOR IN A POWER STATION * CALIBRATION OF SURFACE PLATES (FLATNESS) * MACHINE TOOLS / CHECKING OF ROTATION ERRORS * MEASUREMENT OF THE ABSOLUTE POSITION OF A Guideway * LARGE GRINDING MACHINE WITH FLAT GUIDEWAYS * FLATNESS MEASUREMENT ON A CIRCULAR SUPPORT OF A TURN TABLE * MEASUREMENT OF A CIRCLE ON A ROUND TABLE OF A GRINDING MACHINE * MEASUREMENT OF PITCH AND ROLL ON A GRINDING MACHINE * MEASUREMENT OF THE RECTANGULARITY OF THE HEAD OF A ROUND TABLE GRINDING MACHINE * DAM MONITORING * EFFICIENT CHECKING OF THE ALIGNMENT OF A MACHINE / CASE 1 + 2 * MEASURING – CALIBRATION / FLATNESS MEASUREMENT, ANGLES |
Product Specification
| L1 | W | H | Weight/KG | P/N |
| /MM | /MM | Cast iron | ||
| 150 | 46.5 | 51 | 0.8 | LVWH150 |
| 200 | 46.5 | 51 | 1.2 | LVWH200 |
| 250 | 46.5 | 15 | 1.6 | LVWH250 |
